SR006 integrated full-band GNSS reception and integrated navigation algorithms, with a built-in QMC5883P geomagnetic sensor to achieve high-precision positioning and anti-interference capability. It can effectively cope with harsh environments such as satellite signal jamming, occlusion and multipath effects, delivering continuous, real-time and reliable high-precision positioning results together with robust anti-interference performance.

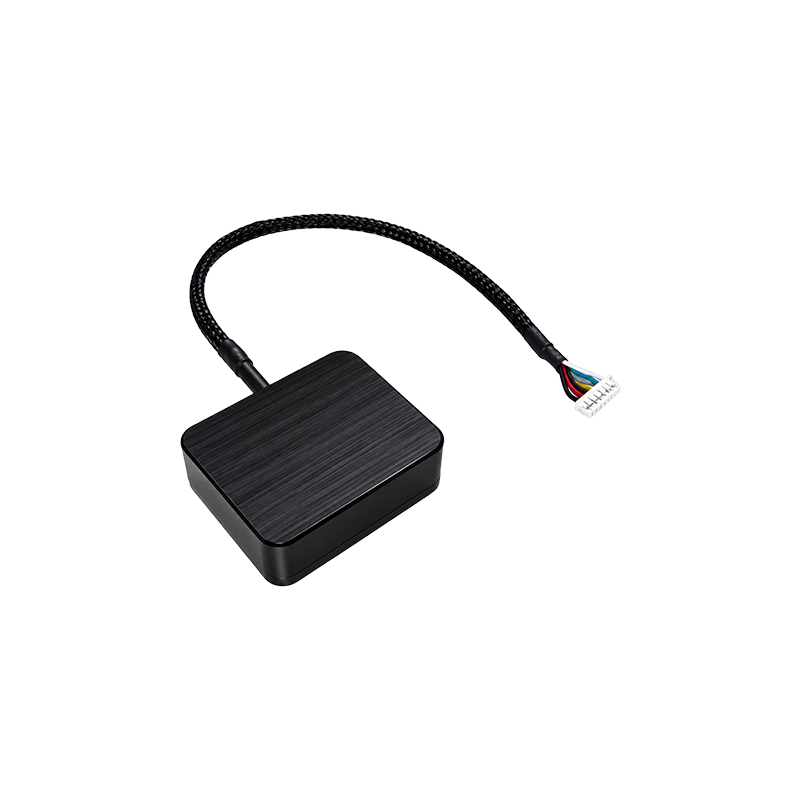

SR006-InfoxDome-ONE-FPV
SR006 integrated full-band GNSS reception and integrated navigation algorithms, with a built-in QMC5883P geomagnetic sensor to achieve high-precision positioning and anti-interference capability. It can effectively cope with harsh environments such as satellite signal jamming, occlusion and multipath effects, delivering continuous, real-time and reliable high-precision positioning results together with robust anti-interference performance.
- Overview
- Parameters
- Related Products
Overview
Parameters
| Product Parameters | |
| Support System | BDS, GPS, GLONASS, GALILEO |
| Single Point Positioning Accuracy | ≤1m（1σ，PDP≤4）（under no interference) ≤10m（1σ，PDP≤4）（under interference） |
| First Positioning Time | Cold start time: ≤40s; Hot start time: ≤5s; Unlock recapture time: ≤2s. |
| Motion Fitness | Speed: ≤500m/s; Acceleration: ≤4g. |
| Timing Accuracy | ≤20 ns（RMS） |
| Capacity of Resisting Disturbance | 65dBc |
| Power Dissipation | ≤200mA@5V |
| Joggle | 1 x UART TTL |
| Size | (47±0.5)x(38±0.5)x(15±0.5)mm |
| Weight | 32±1g |
